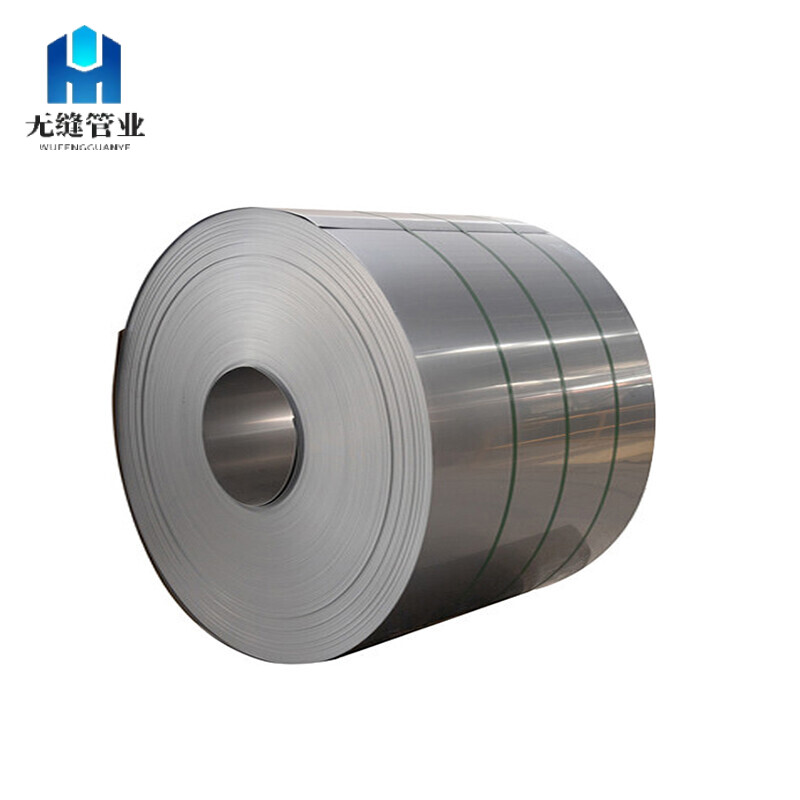

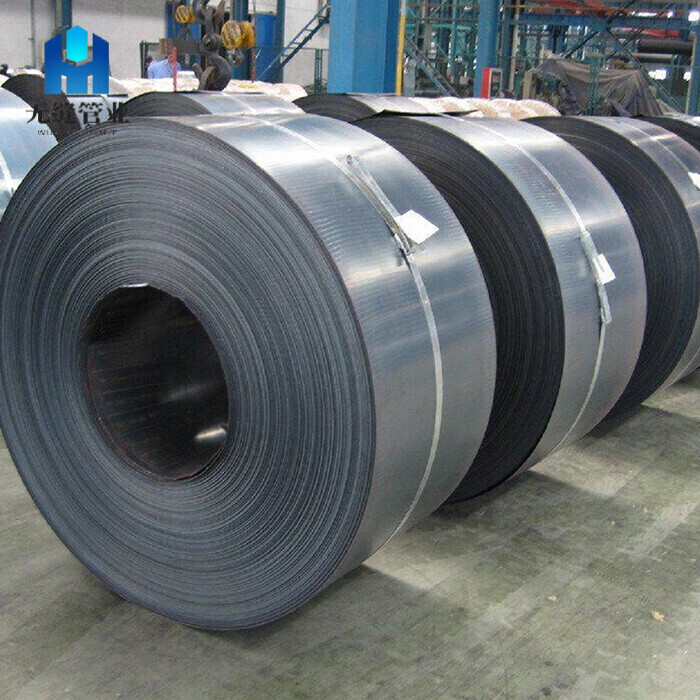

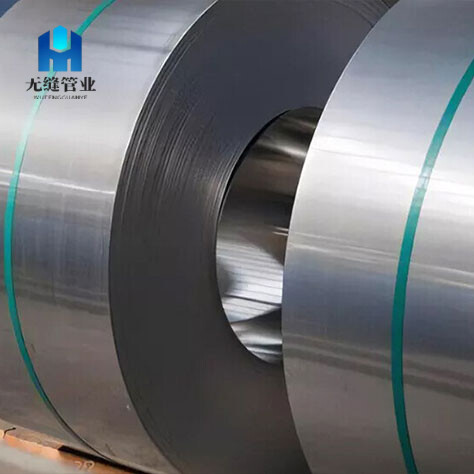

SPCC/SPCC/SPCD/SPCE Hot Rolled Steel Coil

SPCC steel is produced by subjecting hot rolled steel to a cold rolling process, which not only improves its surface finish but also enhances its mechanical properties.
+8613920079211
+8613920079211
admin1@tjsmlspipe.com
Contact Us

Product Parameters

Carbon Steel: Properties, Production, Examples and Applications


Carbon steel is an iron-carbon alloy, which contains up to 2.1 wt.% carbon. For carbon steels, there is no minimum specified content of other alloying elements, however, they often contain manganese. The maximum manganese, silicon and copper content should be less than 1.65 wt.%, 0.6 wt.% and 0.6 wt.%, respectively.


Types of carbon steel and their properties


Carbon steel can be classified into three categories according to its carbon content: low-carbon steel (or mild-carbon steel), medium-carbon steel and high-carbon steel . Their carbon content, microstructure and properties compare as follows:


Carbon content (wt.%)MicrostructurePropertiesExamples
Low-carbon steel< 0.25Ferrite, pearliteLow hardness and cost. High ductility, toughness, machinability and weldability
Medium-carbon steel0.25 – 0.60MartensiteLow hardenability, medium strength, ductility and toughness
High-carbon steel0.60 – 1.25PearliteHigh hardness, strength, low ductility

Carbon Steel Description


Grade:


1)GB: Q195, Q215, Q235A, Q235B, Q235C, Q235D, Q255A, 255B, Q275, Q295A, Q295B, Q345B, Q345C, Q345D, Q345E, Q390A, Q390B, Q390C,Q390D, Q390E, Q420, Q420B, Q420C, Q420D, Q420E, Q460D, Q460E, Q500D, Q500E, Q550D, Q550E, Q620D, Q620E, Q690D, Q690E


2)EN: S185,S235JR, S275JR, S355JR, S420NL, S460NL S500Q, S550Q, S620Q, S690Q


3)ASTM: Grade B, Grade C, Grade D, A36, Grade 36, Grade 40, Grade42, Grade 50, Grade 55, Grade 60, Grade 65, Grade 80


4)JIS: SS330, SPHC, SS400, SPFC, SPHD, SPHE



PRODUCT DETAILS



SPCC/SPCC/SPCD/SPCE   Hot Rolled Steel Coil
SPCC   steel coil comes with impressive properties, making it an ideal choice across   various industries. A key advantage is its high tensile strength, giving it   the capacity to deal with heavy loads and resist deformation. So SPCC steel   coil is especially suitable for applications requiring superior durability   and structural integrity. Another notable feature of SPCC steel coil is its   excellent formability as the coil can be easily shaped and molded into   different sizes and dimensions without compromising its structural integrity.   This flexibility makes it suitable for manufacturing processes like stamping,   bending and deep drawing. SPCC steel coils have a uniform appearance that   adds a professional feel to finished products using this material. Additionally,   this surface helps greatly in preventing corrosion, thus extending the life   of the coils.
Product   Parameters
Product   NameSPCC/SPCC/SPCD/SPCE   Cold Rolled Steel Coil
Production   ProcessHot Rolling,   Cold Rolling
Material   StandardsAISI, ASTM,   ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width45mm-2200mm
LengthCustom Size
ThicknessHot Rolling:   2.75mm-100mm
Cold Rolling: 0.2mm-3mm
Delivery   ConditionsRolling,   Annealing, Quenching, Tempered or Standard
Surface   ProcessOrdinary, Wire   Drawing, Laminated Film
Chemical   Composition
SPCC   Grade: C≦0.15; Mn≦0.60; P≦0.100; S≦0.035
SPCCT   Grade: C≦0.15; Mn≦0.60; P≦0.100; S≦0.035
SPCD   Grade: : C≦0.10; Mn≦0.50; P≦0.040; S≦0.035
SPCE   Grade: C≦0.08; Mn≦0.45; P≦0.030; S≦0.030
SPCF   Grade: C≦0.06; Mn≦0.45; P≦0.030; S≦0.030
SPCG   Grade: C≦0.02; Mn≦0.25; P≦0.020; S≦0.020
Mechanical   Properties
Hardness:   Heat Treatment Code HRBS HV10
Annealed   A – –
Annealed   + Finishing S – –
1/8 hard   8 50~71 95~130
1/4 hard   4 65~80 115~150
1/2 hard   2 74~89 135~185
Full   hard 1 ≥85 ≥170
Scope of   Application
SPCC/SPCCT:   Common & General Use; Characteristics: Suitable for bending processing   and simple deep drawing processing, is the most demand varieties;   Applications: Refrigerators, rails, switchboards, iron baskets and so on.
SPCD:   Drawing & Stamping Use; Characteristics: Second only to SPCE, is the   quality of the smaller deviation of the drawing steel plate; Applications:   Automobile chassis, roof and so on.
SPCE/SPCF:   Deep Drawing & Stamping Use; Characteristics: Grain is adjusted, deep   drawing performance is excellent, after the stamping can get a beautiful   surface. Applications: Car fender, rear side panels and so on.
SPCG:   Extra-Deep Drawing & Stamping & Punching Use; Characteristics: Very   low carbon cold rolled steel, excellent deep drawing processability.   Applications: Car interior board, surface and so on.
Remarks:   SPCCT is users specified the grade of SPCC which need to ensure that the   tensile strength and extensibility of the species. SPCF, SPCG will need to   ensure that there have non-aging (not due to the occurrence of tensile   deformation of the property), after outside factory for 6 months – that is,   SPCC, SPCD, SPCE if stored for a long time, will produce mechanical   performance changes, especially to reduce the cold stamping performance, it   should be used as soon as possible.SPCC series catalog need to make provision   for hardness and surface in advance when ordering.
